Estos motores son de tipo brushless. Están pensados para ser usados con el Meteor65 y el Meteor65 HD.
Se diferencian de los motores de tipo brushed en que en lugar de utilizar una escobilla para producir el giro, este tiene un sistema trifásico de control sobre un sistema de imanes que producen el movimiento. De esta manera, los motores son mucho más duraderos, por no tener tantos puntos de contacto entre el eje y el stator. A su vez, tienen una respuesta mucho más veloz y precisa a los mandos que le enviemos. De esta manera, podremos hacer vuelos más acrobáticos.
Vienen en dos valores de KV, siendo 19500 y 22000. A mayor KV, mayores serán las revoluciones por minuto que cada motor nos entregue por Volt.
Descripción original:
0802SE 22000KV/19500KV motor is a lightweight 1S motor, compared with the 0802 series brushless motors, it is not only significantly reduced the weight which is only 1.83g/pc but also ensuring the awesome performance of power and thrust. It makes the perfect dynamic balance, which gives the drone more flexible and longer flying time. What' more, we highly recommend using it on the weight-sensitive 65mm brushless whoop drone, such as the Meteor65 HD.
Bullet Point
- 0802SE 22000KV/19500KV motor is a lightweight 1S motor, specially designed for 1S whoop drone-like Meteor65 HD.
- Compared with the 0802 series brushless motors, 0802SE 22000KV has significantly reduced the weight, which is only 1.83g/pc. It still ensures the awesome performance of power and thrust.
- Compared with 0802 19500KV brushless motors, 0802SE 19500KV is reduced by 0.15g, which is only 1.8g. While it is used on a 65mm drone, pilots can get a more flexible flight and can fly longer.
- If you are trying a stronger violent indoor flight, 22000KV is ideal for you. If you wanna get a longer flight, 19500KV will be more suitable.
- 0802SE Motor makes the perfect dynamic balance, which gives the drone more flexible and longer flying time, which is perfect for the weight-sensitive 65mm brushless whoop drone.
- Lead wire soldered to the PCB, which allows you to repair it easier once it disconnected.
- Compared with 0802 19500KV brushless motors, 0802SE 19500KV is reduced by 0.15g. When it is used on a 65mm drone, it is more flexible and can fly longer.
Specification

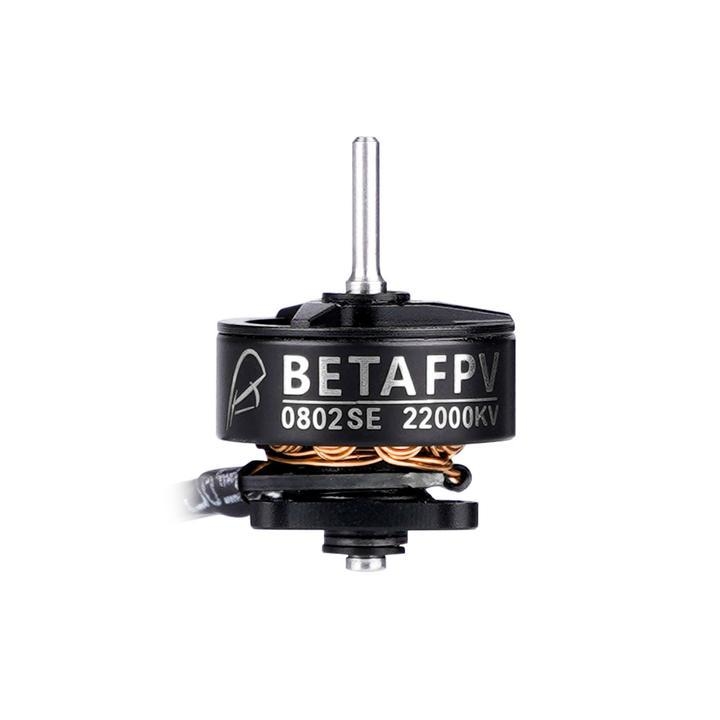

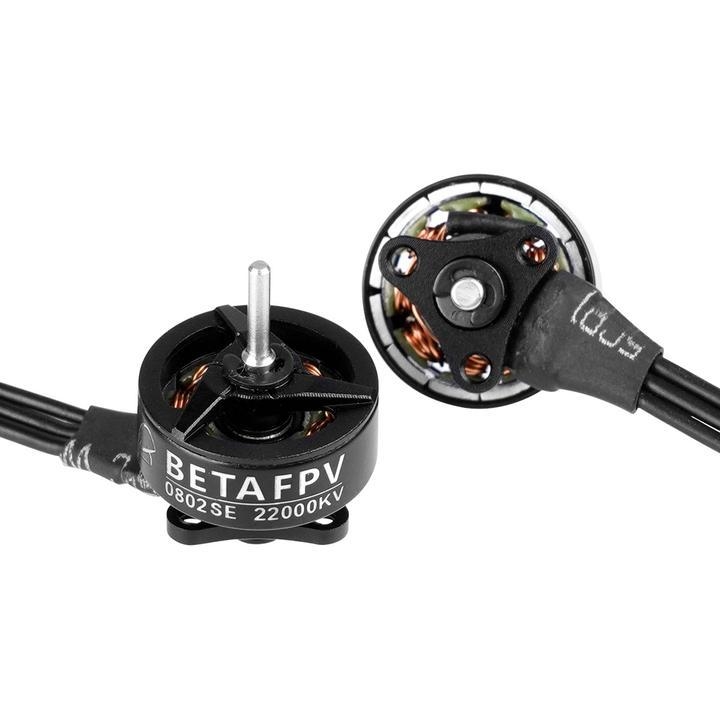

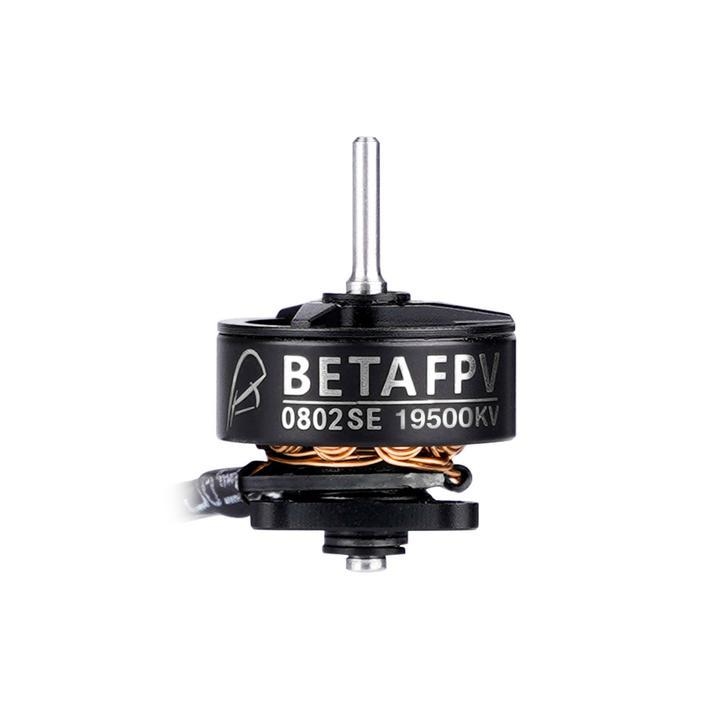

- Item: 0802SE 22000KV/19500KV brushless motor

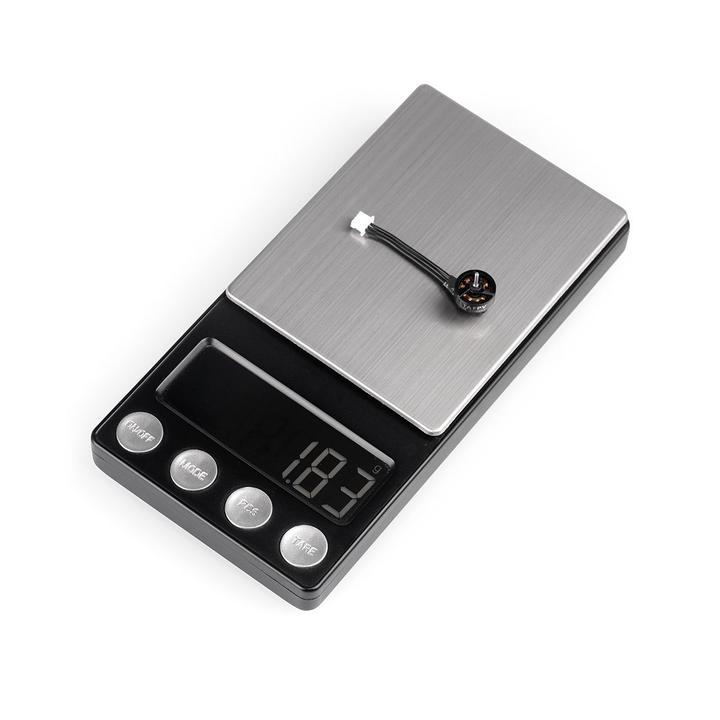

- Weight: 1.83g/pc
- Color: Black
- Shaft length: 5mm
- Shaft diameter: 1mm
- Hole distance: 6.6mm
- Motor Mount Holes: M1.4
- Input Voltage: 1S
- Cables: 25mm long, 30AWG cables
- Dimensions: 10.5*10.5*13.6mm
- Bearings: Brass Bushings
Recommended Parts
Package

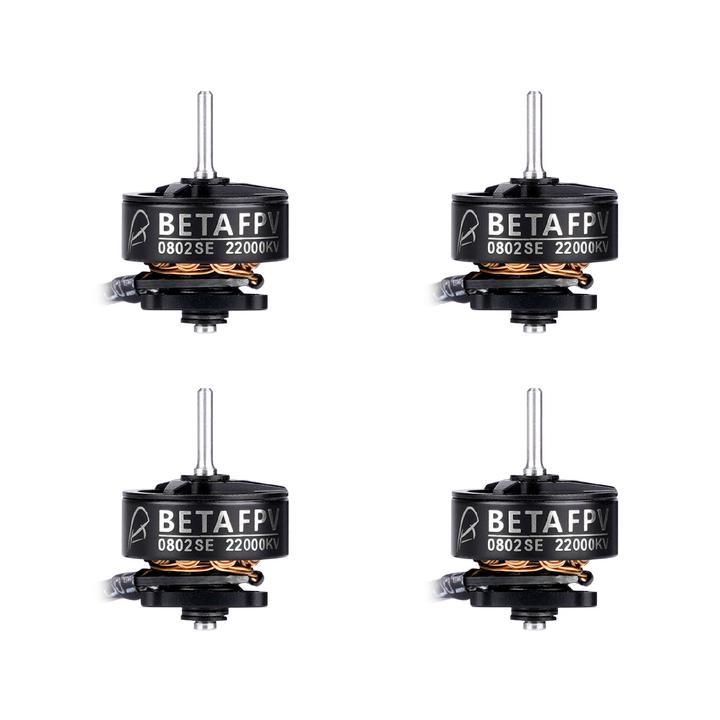

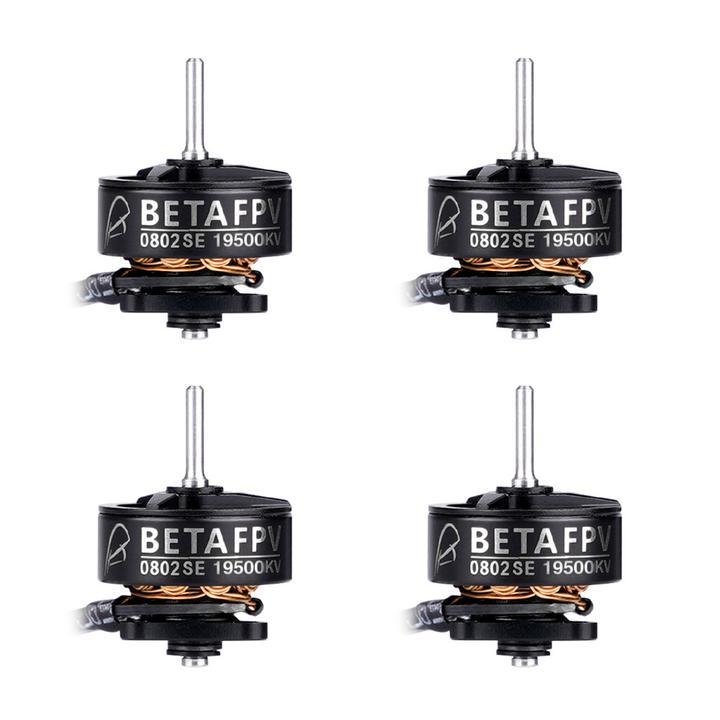

- 4 * BETAFPV 0802SE Brushless Motors
- 1 * Pack of M1.4*3 Screws
