$24.000,00

12 cuotas de $3.482,60
8% de descuento pagando con Transferencia bancaria o efectivo Ver medios de pago
Descripción

Los Visores VR01 son un excelente equipo de FPV. Con ellos podes verte inmerso en el vuelo de tu drone y sentir que estás sentado en su cabina piloteando.

Cuentan con dos antenas externas, conectadas al receptor de video VRx (interno en el equipo), que capta las frecuencias estándar que usamos a la hora de volar. Para encontrar la frecuencia correcta, cuenta con un buscador automático. Si hay más de una persona volando, es posible hacer selección manual.

Otra gran función de este equipo es el DVR que tiene incluido. Con él podemos registrar lo que vamos viendo en el vuelo en una tarjeta SD que se coloca en el mismo visor. Es importante notar que estamos grabando la señal de video que llega a los visores. Esto significa que cualquier interferencia que hayamos notado durante el vuelo quedará también registrada en el archivo de video que hayamos generado. Ojo al piojo.



Descripción Original:

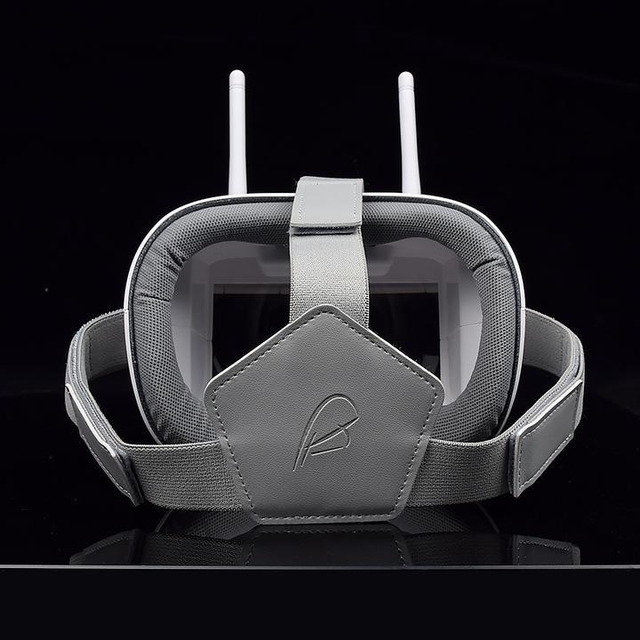

BETAFPV VR01 FPV Goggles - a First-Person-View Goggle with 4.3 inches 800*480px high brightness LCD which will allow you to experience a bright world without warped and blurred images. Adopt an ergonomic design with a foam sponge faceplate and a three-sided adjustable headband, comfortable like cotton and suitable for all age ranges.

Bullet Point

  • BETAFPV VR01 FPV Goggles is with 4.3 inches 800*480px high brightness LCD, which is specially tuned for FPV racing or Model airplanes.
  • Adopt an ergonomic design with a foam sponge faceplate and a three-sided adjustable headband, this FPV Goggles fits your face and head perfectly.
  • Built-in super sensitiveness 5.8GHz 40ch receiver, especially with RaceBand.
  • Come with an advanced auto-searching function and show you the working frequency on screen.
  • 92% transparent lens adopted, no distort, no blur on the adage of the screen.
  • Lightweight only 375g, it also comes with a 2hr 2000mAh battery, bringing great endurance. RTF for any scale, racing, Model airplane game.

Specification

BODY

  • Dimension: 155x144x113mm
  • Weight: 375g with 2hr 2000mAh battery
  • Belt: three-Ways adjustable belt

SCREEN

  • screen size: 4.3 inch
  • Screen resolution: 800*480 (No blur after enlarge by the lens)
  • Screen brightness: 300cd/m2 with special high brightness backlight LED for outdoor FPV
  • View Angle: 12 O’CLOCK

LENS

  • 2.8x boost of the video to acquire intense feel-in-there video
  • 92% transparent rate no distort of light

JACK

  • Input CVBS
  • Headphone sound output
  • TF Card(C10) Max32G
  • USB DC5V IN, the device operating current of 550mA@5V,built-in battery maximum charge current of 750mA@5V; if the device is working when charging, please pay attention to selecting the rated current greater than 2A/5V charging equipment

BATTERY

  • Built-in 3.7V/2000mAh high-capacity polymer battery, LED stays red while charging. When charging is completed, the LED will turn to bright green.
  • Each full charge revive is around 2 hours working time

Band and Channel Selection



  CH
CH 1
(MHZ)
CH 2
(MHZ)
CH 3
(MHZ)
CH 4
(MHZ)
CH 5
(MHZ)
CH 6
(MHZ)
CH 7
(MHZ)
CH 8
(MHZ)
GROUP
A
5865
5845
5825
5805
5785
5765
5745
5725
B
5733
5752
5771
5790
5809
5828
5847
5866
D
5705
5685
5665
5645
5885
5905
5925
5945
E
5740
5760
5780
5800
5820
5840
5860
5880
R
5658
5695
5732
5769
5806
5843
5880
5917

Operation Instructions

KEY
  • K1>SearCH/AV
Default mode, Short press for automatically search signals to certain signal strength and stops on that channel; Long press switch RF MOD and Long press for AV MOD; In Play mode, pressed jump volume to adjust OSD.
  • K2>MENU/Power
Default mode, Short press for MENU OSD; Long press 3S for Power OFF/ON; MENU pressed, this button is used as the Return.
  • K3>REC/Play/OK
Default mode, Short press for recording /STOP; Long press for Play mode; MENU pressed, this button is used as the confirmed.<
  • K4>Band+/VOL+
Default mode, Short press for Band+ option A, B, D, E, F, R cycle selection; Long press for Volume control -; MENU pressed, this button is used as the UP.
  • K5>CH+/VOL-
Default mode, Short press for CH 1~8 cycles; Long press for Volume control +, MENU pressed, this button is used as the DOWN.


PLAYBACK

  • Call MENU and select Playback (Short Press K1 button to call menu, and use K3 button to select Playback mode; Or long pressed K3 )
  • Review/Replay in Playback mode (Playing Short K1 jump volume adjust OSD)
  • Buttons have a different function in playback mode
  • Record file: AVI, 800*480px progressive
  • Support up to 32G TF card (C10 recommend)
  • K2: Playback menu (volume control/file delete/protect)
  • K4: UP/ fast backward<<
  • K5: DOWM/ fast backward>>
  • K3: Select/Play/ Pause
  • K1: Quit Playback mode
NOTE: If the device is not used for a long time, please charge once every four months, in order to protect the battery.

Package

  • 1 * BETAFPV VR01 FPV Goggles
  • 1 * USB Charging Cable
  • 2 * Dipole 5.8G Antennas
  • 1 * Adjustable Headband
